120A Waterproof Brushless ESC, 2-4S LiPo Sensorless Speed Controller for 1/10 RC Car, Truck, Buggy, Truggy, Pre-soldered XT90 & 4.0mm Bullet Connectors, 32-bit MCU - T10 Series

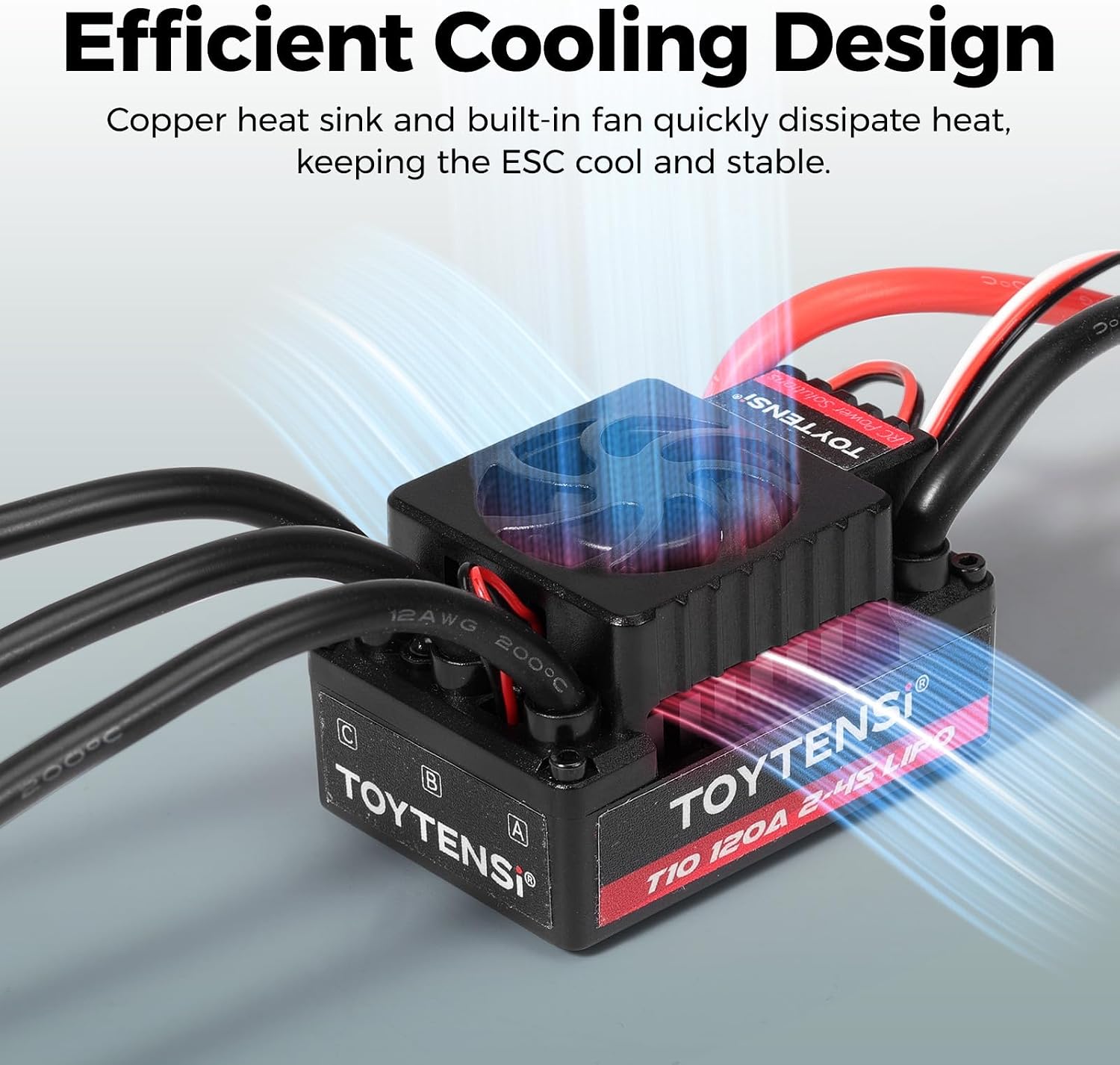

𝗜𝗡𝗧𝗥𝗢𝗗𝗨𝗖𝗧𝗜𝗢𝗡： Upgrade your RC adventures with the TOYTENSI T10 120A Brushless ESC. Specifically engineered for 1/10 scale enthusiasts, this high-performance electronic speed controller combines raw power with a sophisticated 32-bit MCU for ultra-smooth throttle linearity. Whether you are racing on a professional track or bashing in the backyard, the TOYTENSI T10 delivers the reliability and customization options needed to dominate the terrain. 𝗞𝗘𝗬 𝗙𝗘𝗔𝗧𝗨𝗥𝗘𝗦： ●Precision Engineering: Utilizing advanced 32-bit microprocessor technology for faster response times and more accurate motor control compared to standard 8-bit ESCs. ●Superior Heat Management: Features a robust integrated heatsink and a high-RPM cooling fan to maintain optimal operating temperatures even under heavy 4S LiPo loads. ●Flexible Driving Modes: Supports three distinct running modes (Forward/Brake, Forward/Brake/Reverse, and Forward/Reverse) to suit racing, practice, or specialized rock crawling needs. ●Intelligent Coasting: The unique "Coast" feature allows your vehicle to glide naturally when off-throttle, simulating a more realistic driving feel and reducing mechanical wear. ●Extreme Durability: Built with premium internal components and a reinforced casing to withstand high-vibration off-road impacts. 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒: ●𝗣𝗿𝗼𝗱𝘂𝗰𝘁 𝗡𝗮𝗺𝗲: T10 120A 2-4S ESC ●𝗖𝗼𝗻𝘁./𝗣𝗲𝗮𝗸 𝗖𝘂𝗿𝗿𝗲𝗻𝘁: 120A/720A ●𝗜𝗻𝗽𝘂𝘁 𝗩𝗼𝗹𝘁𝗮𝗴𝗲: 2-3S LiPo ●𝗕𝗘𝗖 𝗢𝘂𝘁𝗽𝘂𝘁: 6V 3A ●𝗜𝗻𝗽𝘂𝘁 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿𝘀: XT90 (Male) ●𝗢𝘂𝘁𝗽𝘂𝘁 𝗖𝗼𝗻𝗻𝗲𝗰𝘁𝗼𝗿𝘀: 4.0mm Gold Connectors (Female) ●𝗟𝗲𝗻𝗴𝘁𝗵: 56.0mm/2.20in ●𝗪𝗶𝗱𝘁𝗵: 38.0mm/1.50in ●𝗛𝗶𝗴𝗵𝘁: 33.5mm/1.32in ●𝗪𝗲𝗶𝗴𝗵𝘁: 133g 𝐒𝐄𝐓𝐓𝐈𝐍𝐆𝐒: ●𝟭.𝐓𝐡𝐫𝐨𝐭𝐭𝐥𝐞 𝐑𝐞𝐬𝐩𝐨𝐧𝐬𝐞:*𝟭.𝟬𝗺𝘀/1.5ms/2.0ms/3.0ms Determines how quickly the car accelerates. A shorter time results in faster acceleration. ●𝟮.𝐂𝐨𝐚𝐬𝐭:*𝗢𝗳𝗳/10/20/30 When activated, the car will glide or coast for a short distance instead of slowing down immediately when you reduce the throttle. ●𝟯.𝗡𝗲𝘂𝘁𝗿𝗮𝗹 𝗥𝗮𝗻𝗴𝗲:*𝟱%/8%/12% Defines the dead zone around the throttle's neutral position. A wider range means you must move the trigger further before the car starts to move ●𝟰.𝗠𝗶𝗻𝗶 𝗧𝗵𝗿𝗼𝘁𝘁𝗹𝗲:*𝟱%/8%/12%/16% Sets the initial power applied when you first move away from neutral. A higher value makes the car's initial acceleration more aggressive or jumpy. ●𝟱.𝗠𝗮𝘅. 𝗙𝗼𝗿𝘄𝗮𝗿𝗱 𝗙𝗼𝗿𝗰𝗲:40%/55%/70%/85%/*𝟭𝟬𝟬% Limits the top speed in forward gear. A lower value results in a slower maximum speed. ●𝟲.𝗠𝗮𝘅. 𝗥𝗲𝘃𝗲𝗿𝘀𝗲 𝗙𝗼𝗿𝗰𝗲:40%/55%/70%/85%/*𝟭𝟬𝟬% Limits the top speed in reverse gear. A lower value results in a slower maximum speed. ●𝟳.𝗕𝗿𝗮𝗸𝗲 𝗥𝗲𝘀𝗽𝗼𝗻𝘀𝗲:*𝟬.𝟭ms/1.0ms/2.0ms/3.0ms Determines how quickly the brakes engage. A shorter time results in a more immediate braking reaction. ●𝟴.𝗠𝗶𝗻. 𝗕𝗿𝗮𝗸𝗲 𝗙𝗼𝗿𝗰𝗲:*𝗢𝗳𝗳/15%/35%/50% Sets the initial braking power. A higher value applies stronger brakes as soon as you move the trigger into the braking zone. ●𝟵.𝗠𝗮𝘅. 𝗕𝗿𝗮𝗸𝗲 𝗙𝗼𝗿𝗰𝗲:50%/60%/70%/80%/90%/*𝟭𝟬𝟬% Limits the strongest possible braking power. A lower value reduces the overall maximum braking force. ●𝟭𝟬.𝗙𝘄𝗱. 𝗗𝗿𝗮𝗴 𝗕𝗿𝗮𝗸𝗲 𝗙𝗼𝗿𝗰𝗲:*𝗢𝗳𝗳/20%/35%/50%/65%/80%/100% Applies a braking force when the throttle is at neutral while moving forward. A lower value allows the car to coast for a longer distance. ●𝟭𝟭.𝗥𝗲𝘃. 𝗗𝗿𝗮𝗴 𝗕𝗿𝗮𝗸𝗲 𝗙𝗼𝗿𝗰𝗲:*𝗢𝗳𝗳/20%/35%/50%/65%/80%/100% Applies a braking force when the throttle is at neutral while in reverse. A lower value allows the car to coast for a longer distance. ●𝟭𝟮.𝗠𝗼𝘁𝗼𝗿 𝗥𝗼𝘁𝗮𝘁𝗶𝗼𝗻:CW/*𝗖𝗖𝗪 Controls the motor's spin direction (Clockwise or Counter-Clockwise). Use this to correct the motor direction if it is installed backwards. ●𝟭𝟯.𝗥𝘂𝗻𝗻𝗶𝗻𝗴 𝗠𝗼𝗱𝗲:(Fwd./Bra.)/(*𝗙𝘄𝗱./𝗕𝗿𝗮./𝗥𝗲𝘃.)/(Fwd./Rev.) Forward/Brake: No reverse; the car can only go forward and brake. Forward/Brake/Reverse: Standard mode with forward, brake, and reverse. Forward/Reverse: The car switches directly between forward and reverse without a dedicated brake. ●𝟭𝟰.𝗥𝗲𝘃𝗲𝗿𝘀𝗲 𝗠𝗼𝗱𝗲:*𝗢𝗻𝗲 𝗦𝗵𝗼𝘁/Two Shot One Shot: Pull the trigger once to engage reverse. Two Shots: Quickly pull the trigger twice to engage reverse. ●𝟭𝟱.𝗖𝘂𝘁𝗼𝗳𝗳 𝗩𝗼𝗹𝘁𝗮𝗴𝗲:Off/*𝗔𝘂𝘁𝗼 Auto: The ESC automatically detects your LiPo battery's cell count to prevent over-discharging. Off: Use this setting only for NiMH batteries. ●𝟭𝟲.𝗖𝘂𝘁𝗼𝗳𝗳 𝗧𝗵𝗲𝗿𝗺𝗮𝗹:Off/*𝟵𝟱℃/105℃ Safely shuts down the ESC if its internal temperature exceeds the set threshold to prevent damage from overheating. 𝟭𝟳.𝗕𝗘𝗖 𝗢𝘂𝘁𝗽𝘂𝘁: *6.0V/7.4V ( Only for T8 150A) The options marked with “*” are the factory default settings. 𝐃𝐎𝐖𝐍𝐋𝐎𝐀𝐃 𝐔𝐒𝐄𝐑 𝐌𝐀𝐍𝐔𝐀𝐋 𝐇𝐄𝐑𝐄: https://drive.google.com/file/d/1jwsWBNAee5_qn8MzpDl8gmji3_zQhGOA/view

• Pro-Level 120A Power Delivery: Unleash the full potential of your 1/10 scale RC vehicle. With a 120A continuous and 720A peak current, the T10 ESC provides explosive acceleration and sustained high-speed performance for buggies, monster trucks, and short-course trucks.
• All-Weather Waterproofing: Engineered with a high-grade waterproof and dustproof system, this ESC excels in mud, snow, ice, or wet grass. Experience worry-free driving in harsh environments without compromising the high-efficiency 32-bit microprocessor.
• Advanced Tuning with 17 Parameters: Outperform the competition with precision control. Features 17 programmable items (including Throttle Response, Drag Brake, and Coast) via a simple LED program card, allowing you to fine-tune your driving experience far beyond standard ESCs.
• Plug-and-Play Convenience: Save time and effort with factory-pre-soldered high-quality XT90 battery connectors and 4.0mm female bullet motor connectors. Designed for a seamless upgrade from brushed systems or stock RTR brushless setups.
• Comprehensive Safety Protections: Equipped with multiple protection layers: Low-voltage cut-off, thermal overload protection (at 95°C/105°C), and throttle signal loss protection. The built-in 6V/3A BEC ensures stable power for your steering servos during intense maneuvers.
